Orcfax architecture audit
An audit funded through the Catalyst F12 campaign.
This page will provide documentation pertaining to the execution of the proposal and links to each of the deliverables required for their respective Milestones. The full Catalyst proposal can be found here.
Problem statement
Cardano dApps use Orcfax oracle data to trigger transactions with significant financial outcomes. Their users need assurance from a qualified auditor that Orcfax delivers authentic and accurate data.
Proposed solution
Orcfax will procure auditing services for its on-chain and off-chain architecture, perform fixes and enhancements as per auditor recommendations and report on the audit status and outcomes.
Milestone 1
Because Orcfax has divided the audit into two separate deliverables (i.e. on-chain and off-chain architecture audits), Orcfax will leverage best practice and precedence within the Cardano ecosystem to identify auditing firms and request quotes for each.
Once identified, Orcfax will finalize a Contract for Services with the selected audit firms.
M1 On-chain
Orcfax contacted several auditing firms in order to receive quotes for performing an audit of its on-chain components.

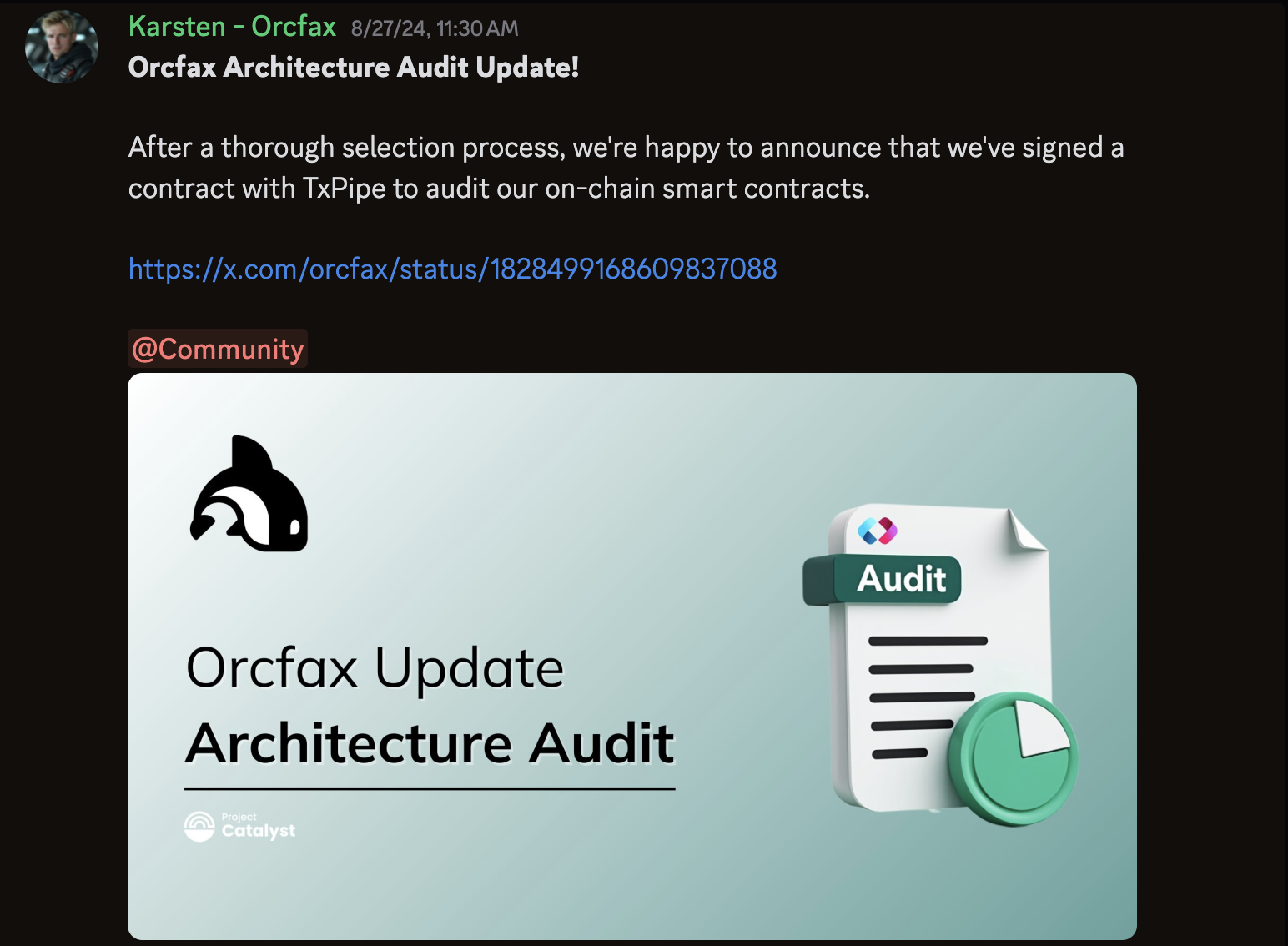

Our team has selected TxPipe to go forward with the audit and successfully signed a contract for services in August of 2024.
M1 Off-chain
Orcfax contacted several auditing firms in order to receive quotes for performing an audit of its off-chain architecture.

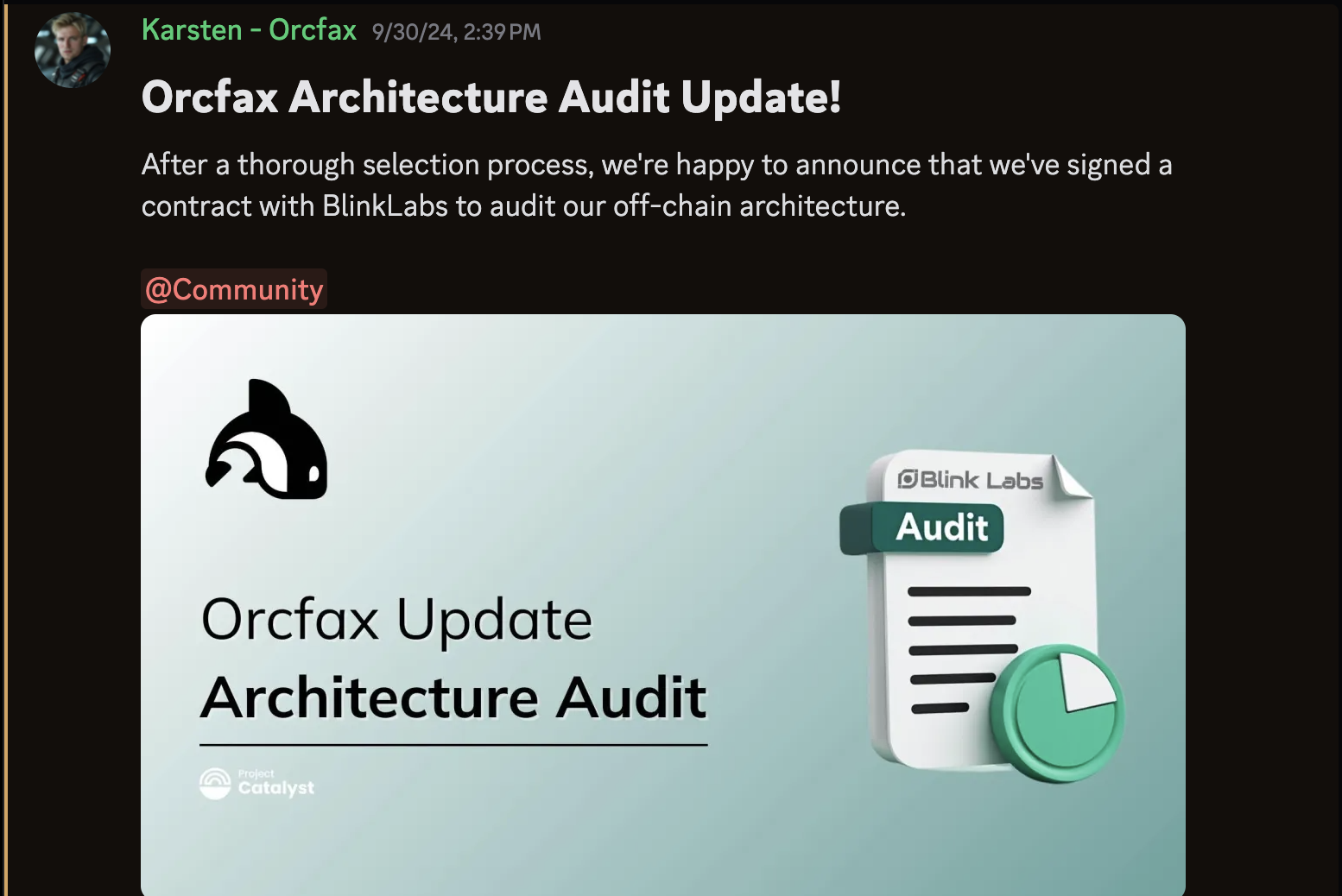

Our team has selected BlinkLabs to go forward with the audit and successfully signed a contract for services in September of 2024.
Milestone 2
After contract finalization, auditors were given access to Orcfax systems. The following constitutes the feedback received from each.
M2 On-chain
TxPipe provided the following interim report:
After review of the report, the Orcfax team acknowledged the identified info-level finding. However, as this does not constitute an issue with the on-chain code, Orcfax has decided not to resolve the finding at this time. It is our opinion that this is, at worst, a tooling concern.
The finding can be simplified as follows: When using a chain indexer, if an integrator filters on address, they may miss utxos that have different stake credentials. This is correct.
However, integrators can just as easily filter on the payment credential, which is the preferred method as this ensures the use of a valid FS as publication is permissionless.
Info are not issues. These are just pieces of information that are beneficial to the dApp creator. These are not necessarily acted on or have a resolution, they are logged for the completeness of the audit. (Audit Report, 18)
M2 Off-chain
For the off-chain audit, BlinkLabs came back after an initial review of relevant components and discussed the value of a SOC2 audit; upon agreement, BlinkLabs requested that Orcfax provide evidence demonstrating its ability to meet each of the SOC2 requirements.
These requirements are provided below.
This request for additional access and materials amounts to nearly 200 items, some of which (such as policies) must be drafted or amended to meet SOC2 requirements.
Orcfax developed the following strategy for accommodating this request: the Orcfax team will divide these requests into 3 batches of deliverables based on their category, and volume of requests, with a 4th dedicated to the development of policies. The latter will be incrementally worked on in conjunction with the other batches so that the batch 3 & 4 are submitted to BlinkLabs together; this deliverable schedule aligns with the remaining milestones for the project.
We believe that by dividing the work into these deliverables we will increase efficiency when responding to any feedback received after batch submission.
Milestone 3
After acknowledging initial feedback and providing the additional access described in the previous milestone, the auditors continued their work. The following constitutes the feedback received from each.
M3 On-chain
TxPipe provided the following Final audit report:
The report lists four Info-level (i.e. advisory) findings which the Orcfax team has acknowledged. However, as these do not constitute issues with the on-chain code, Orcfax has decided not to resolve them at this time. This decision has been made because resolution would result in a disruption of service for integrators, and the potential improvements are outweighed by the possible cost of remediation (e.g. the possibility of making new mistakes by renaming or refactoring code); if or when an update to the Orcfax on-chain service is needed, this decision will be reevaluated. This business decision balances reliability and responsibility given that these info-level findings in some cases constitute, at worst, tooling concerns.
The findings can be simplified as follows:
ORC-301: When using a chain indexer, if an integrator filters on address, they may miss utxos that have different stake credentials.
- This is correct. However, integrators can just as easily filter on the payment credential, which is the preferred method as this ensures the use of a valid FS as publication is permissionless.
ORC-302: The frequent use of acronyms in the documentation added some difficulty in navigation as readers may need to reference explanations elsewhere.
- Readers are expected to take care when reviewing technical documentation. Additionally, the use of acronyms is advantageous in code.
ORC-303: The auditor questioned the need for the FSP to be included within its current repository, and therefore its inclusion within the scope of the audit.
- While the suggestion is not without merit, we disagree as the FSP is an integral part of the current design. Ultimately, the FSP is quite simplistic; t is underpinned by a single key and is thereby entirely controlled by a single entity. As Orcfax continues to decentralize its processes, we hope that this component will be subsumed by a decentralized model, where the FSP and other components are controlled by the network not single entity.
ORC-304: A potential inefficiency was found in the FS UTxO spending; in a collect transaction, for each UTxO being spent, the inputs list is traversed to look for the own script hash. A potential solution was proposed wherein the own script hash is stored in the FS datum during FS UTxO creation in the FsMint redeemer and verify its correctness against the script hash from the Mint purpose. this way, during FS UTxO spending, the datum field can be read instead of traversing the inputs list.
- Our team was interested in this proposal. However, without additional testing it'sa difficult to know whether the proposal would result in a decrease to the cost of collect but at the cost of increasing the tx size of publish (and so decrease max number of outputs). Unfortunately, the scope of TxPipe's work did not include tests of this type.
Info are not issues. These are just pieces of information that are beneficial to the dApp creator. These are not necessarily acted on or have a resolution, they are logged for the completeness of the audit. (Audit Report, 18)
M3 Off-chain
In accordance with the delivery schedule outlined in the last milestone, Orcfax provided BlinkLabs with the first batch of records to demonstrate infrastructure adherence to SOC2 standards.
Batch one requirements can be found below.

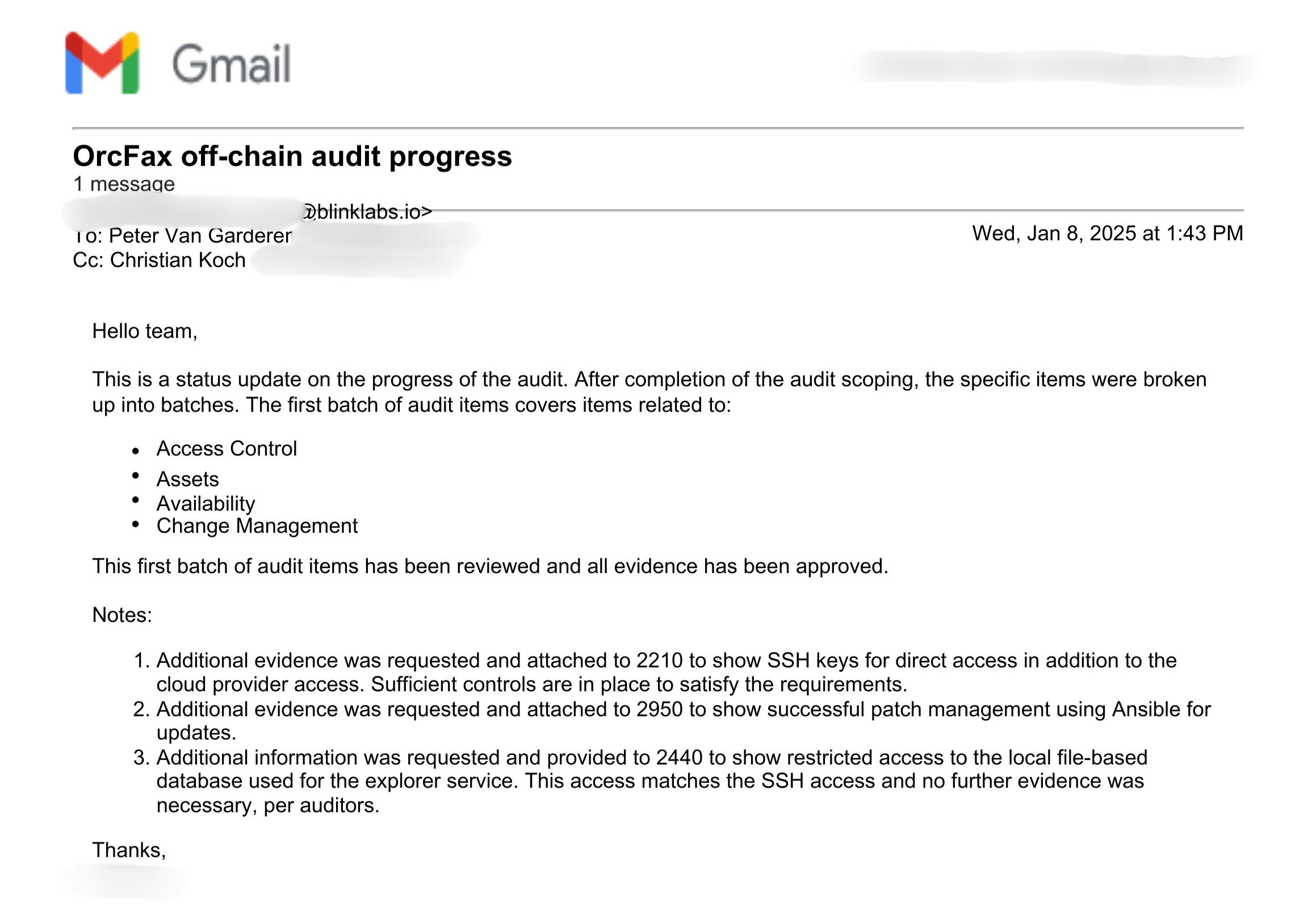

Each of these has been accepted by BlinkLabs as satisfactory, and a letter evidencing progress was provided by their staff. The letter includes notes where BlinkLabs requested, and received, additional evidence to meet specific requirements within the batch.

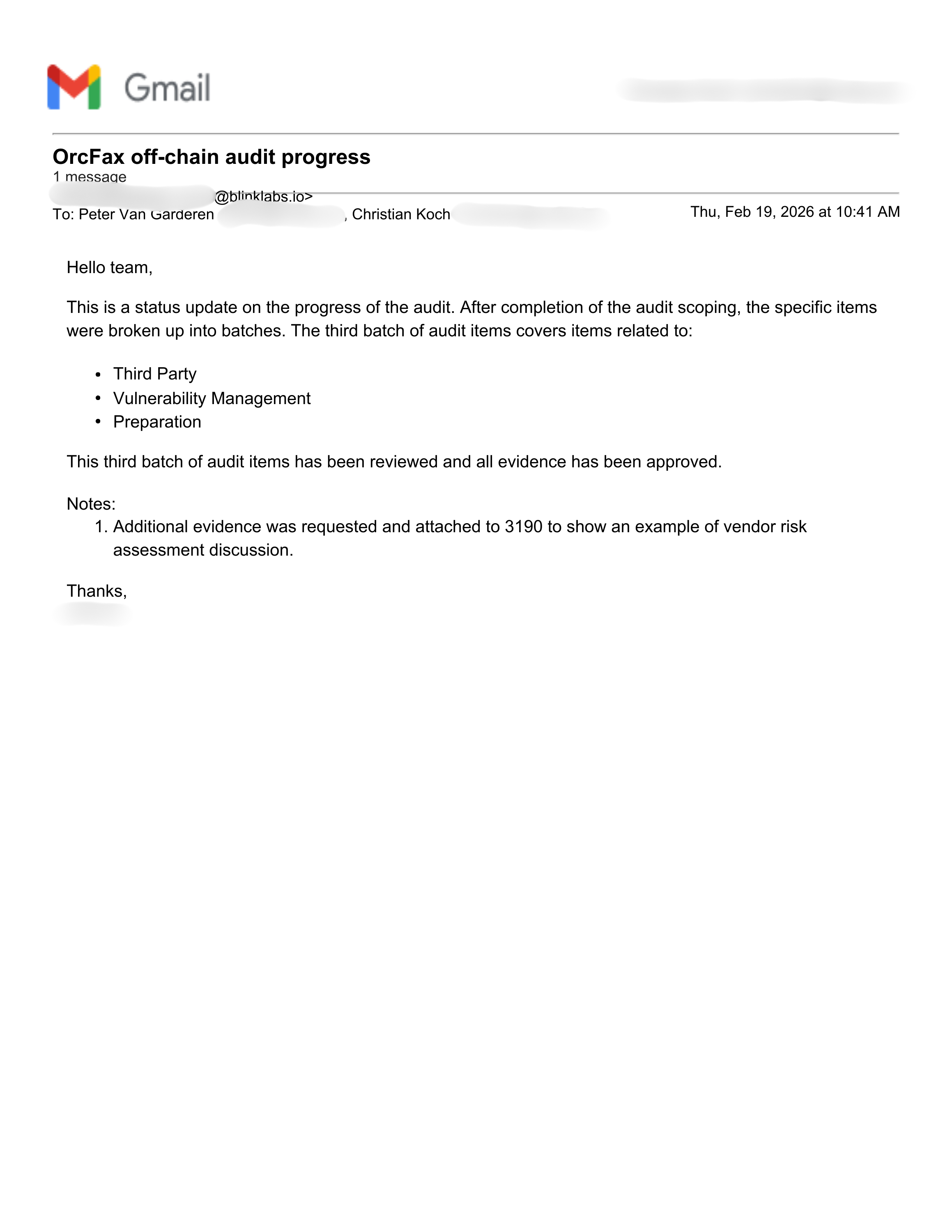

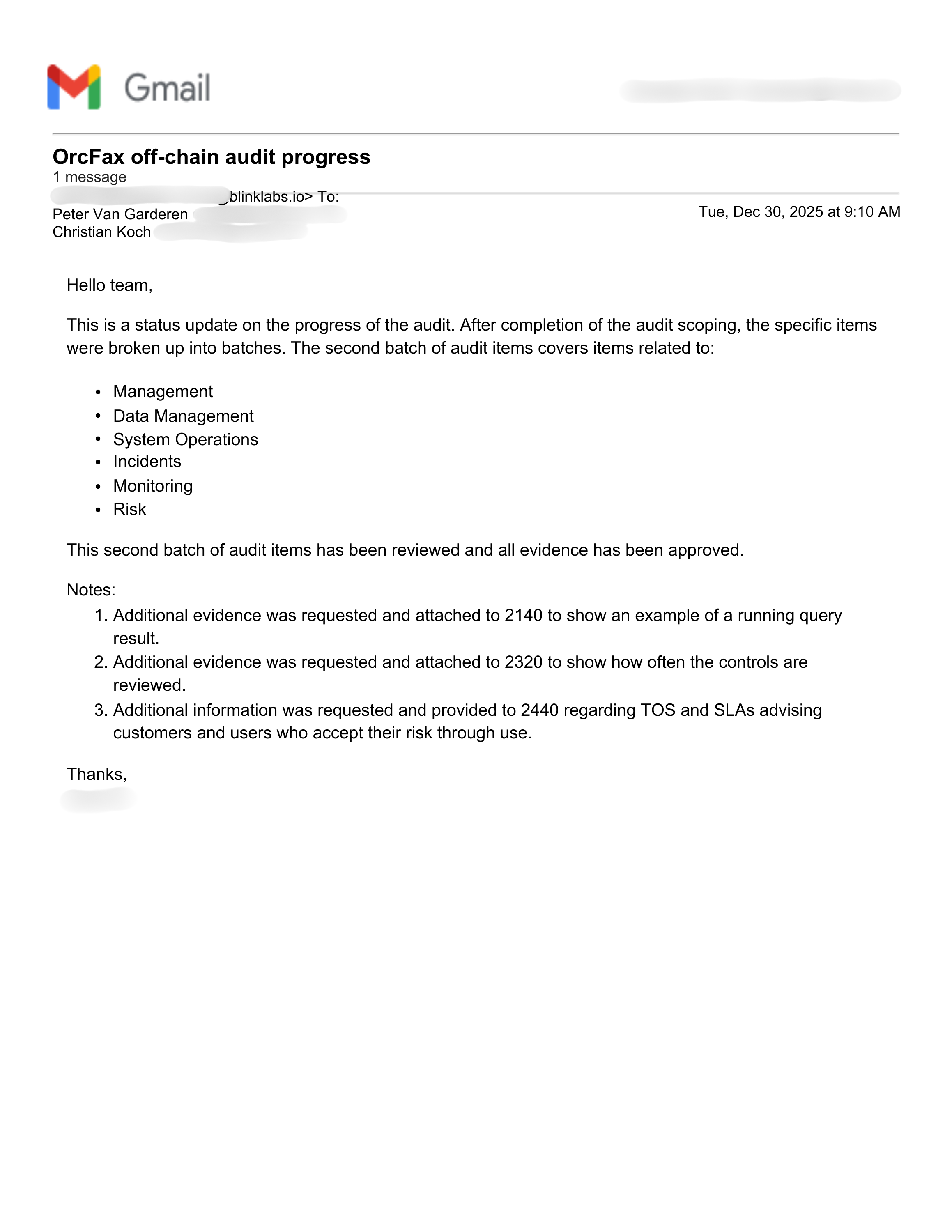

Future milestones will address the remaining batches per the schedule outlined in Milestone 2.
Milestone 4
If Orcfax has passed its Audit, then proceed to final milestone, otherwise
Orcfax will review secondary review feedback from auditors, formatted into an audit status report, which assessed changes made in response to the previous feedback.
If necessary, Orcfax will complete code pull requests for software fixes and enhancements that address audit concerns in feedback.
Milestone 5
A final report containing auditor findings, recommendations, and summary of Orcfax team remediation actions in response to audit.
